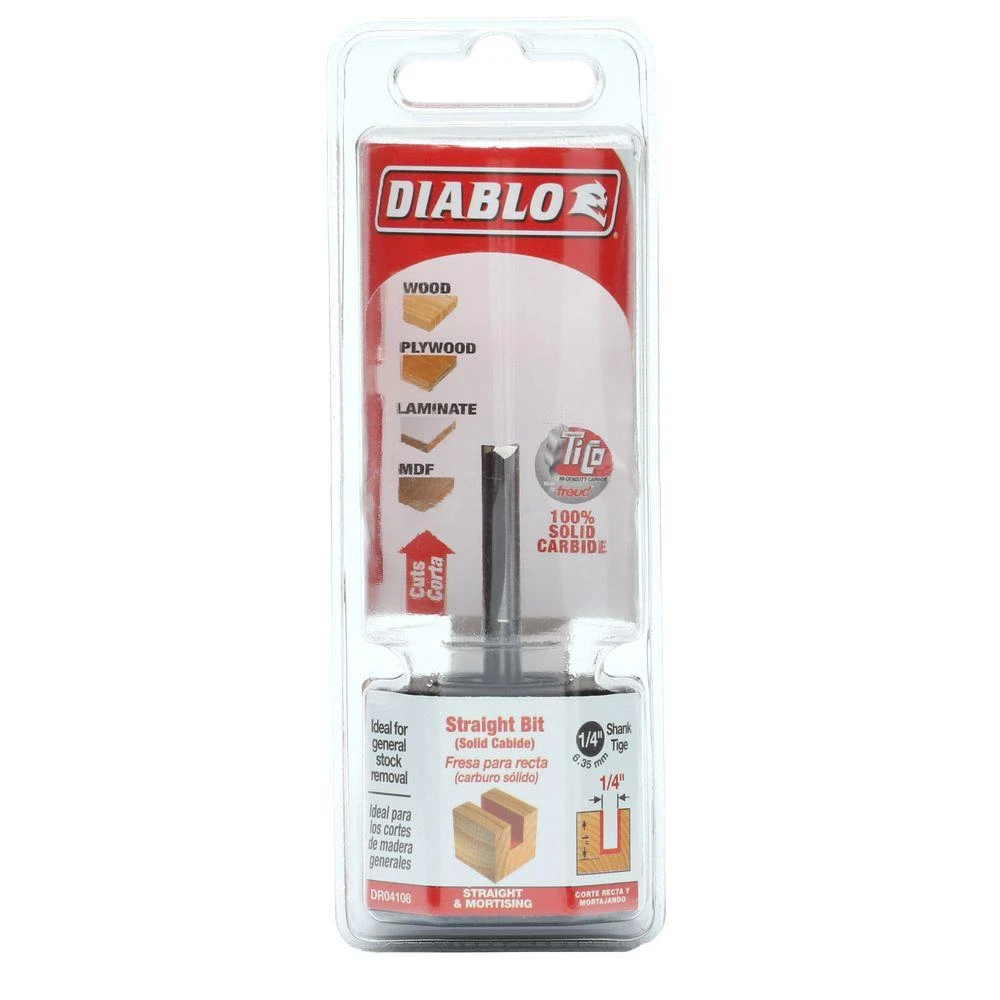

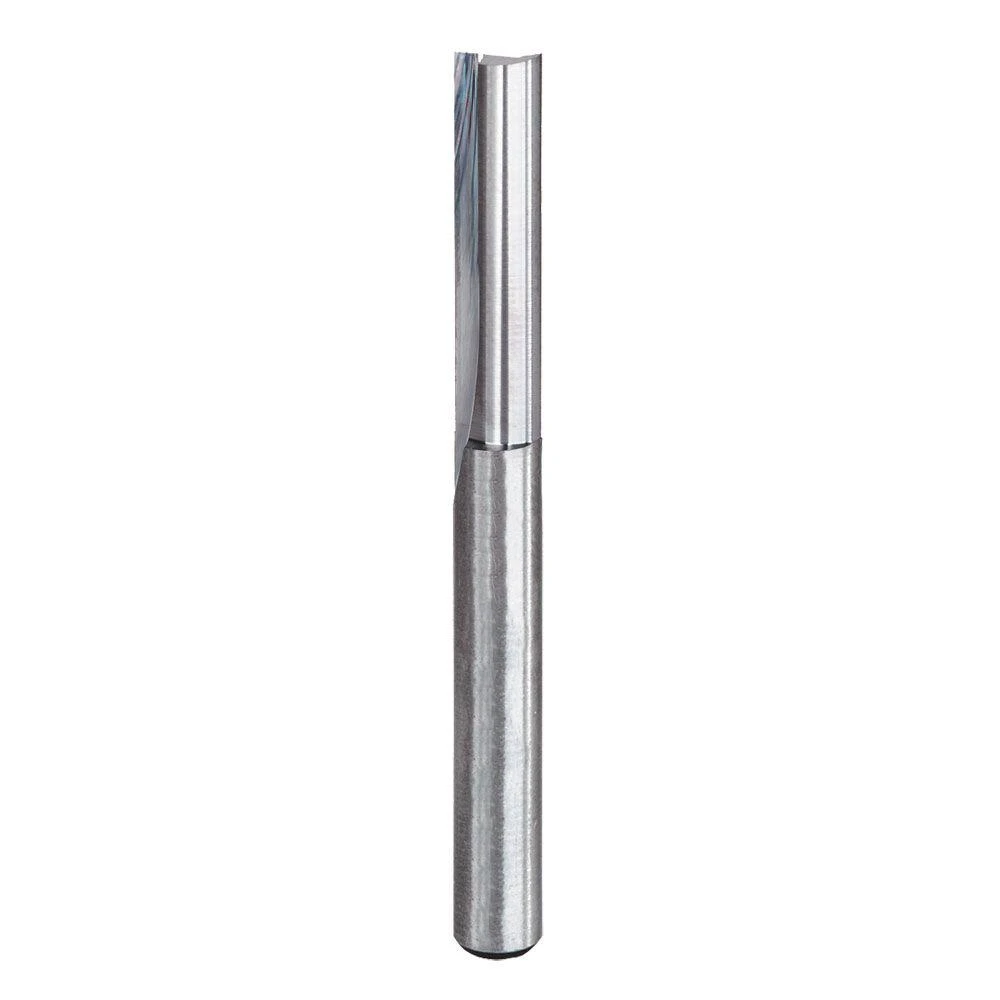

DIABLO 1/4 In. X 1 In. Carbide Straight Router Bit

Ideal for general stock removal, the Diablo 1/4 in. x 1 in. Carbide Straight Router Bit has a kickback-reducing design that fosters smooth, balanced operation for controlled, safe cuts. It’s constructed with solid carbide to withstand high temperatures and features a non-stick coating to reduce friction. Impact resistance comes courtesy of tri-metal brazing, keeping vibrations to a minimum for superb maneuverability.

• Provides a safe, controlled cut ideal for general stock removal
• Tri-metal brazing provides an impact-resistant bond between the carbide and bit
• Solid carbide is corrosion-resistant and stands up to heavy-duty use
• Requires a minimum chuck size of 1/4 in.

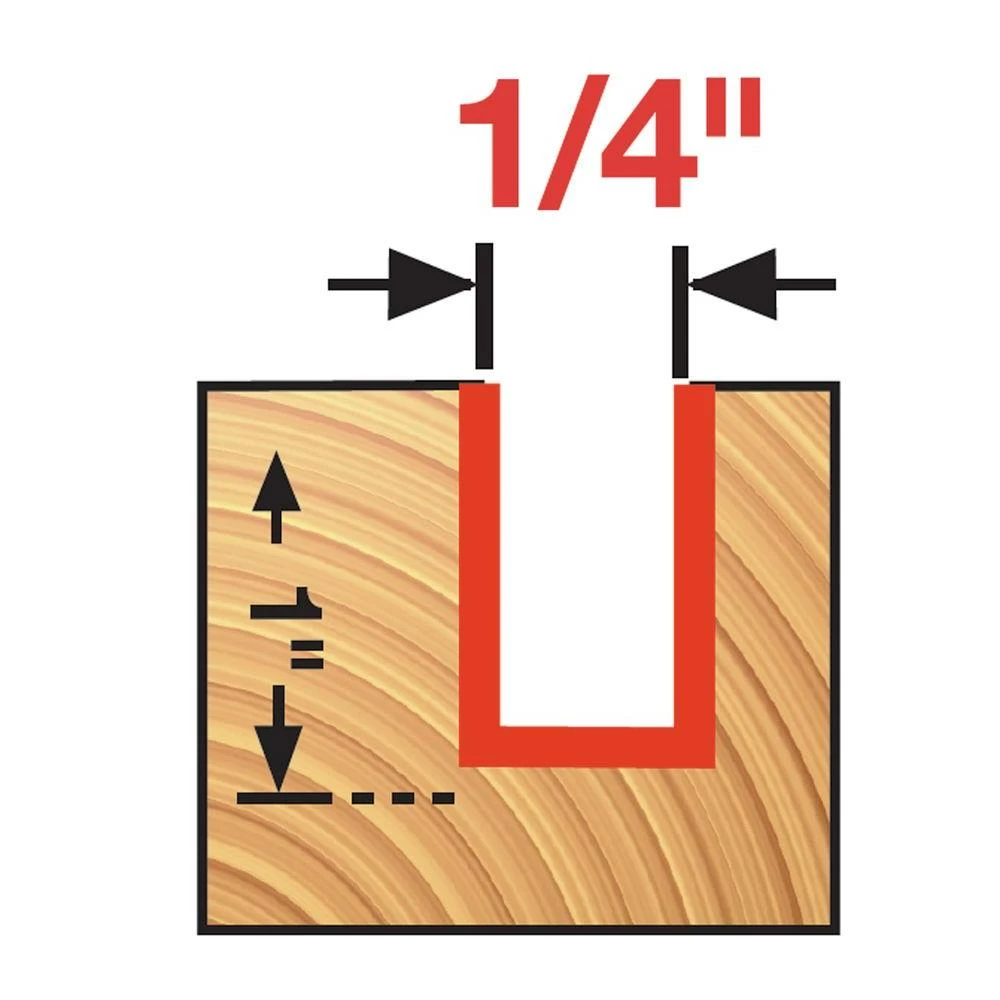

• Overall diameter = 1/4 in.
• Carbide height = 1 in.
• Shank diameter = 1/4 in.
• Overall length = 2-1/2 in.

Specifications

• Self-Feeding: No
• Router/planer type: Straight
• Shank Style: Straight
• Number of Pieces: 1
• Number of Flutes: 2
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Individual/Set: Individual
• Product Length (in.): 2.5
• Product Height (in.): 1.5
• Product Depth (in.): 4.8
• Shank Diameter (in.): 1/4″
• Cut Diameter: .25
• Product Width (in.): 1.5 in
