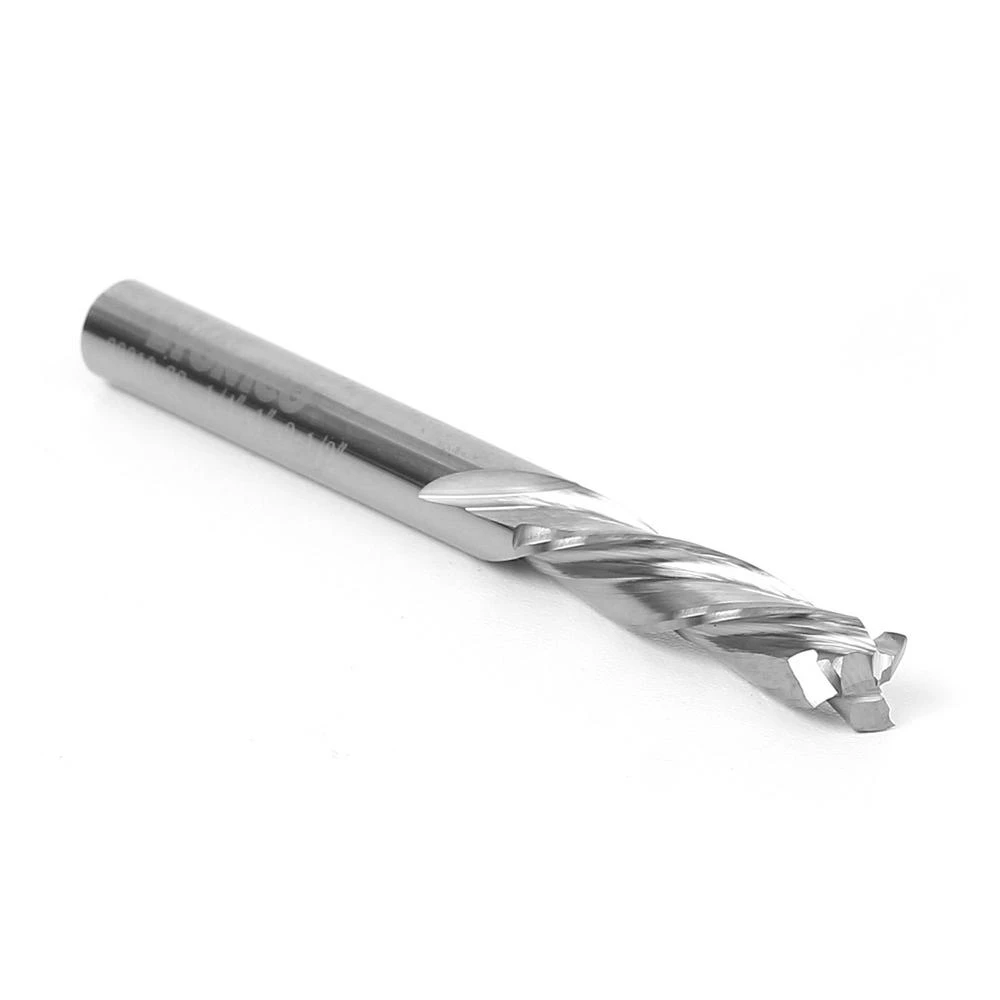

Yonico 3-Flute Compression Cut Spiral End Mill 1/4 In. Dia 1/4 In. Shank Solid Carbide CNC Router Bit

Best for achieving a smooth finish on laminate or veneer finish applications. Cutting Diameter: 1/4 in. Cutting Height: 1 in. Shank Diameter: 1/4 in. Overall Length: 2-1/2 in. Flutes: 3 Compression bits cut down from the top of the stock and up from the bottom of the stock simultaneously. The bit’s unique and complex geometry forces the trimmed material to be compressed toward the center of the stock leaving behind a smooth and sharp finish free of chips on both the top and bottom edges. This bit can also be used for mortising projects that require a smooth bottom surface without sacrificing the mortised edge finish. When working with any veneer finished material in your CNC machine, you need a compression spiral end mill to make full depth cut. These bits are designed to leave clean edges on the top and bottom faces of any material. The compression bit’s unique design pulls chips upward at the bottom of the stock and downward at the top face, producing chip-free surfaces that are perfect for cabinet and furniture parts. Compression cut spiral end mills are excellent for melamine, plywood, MDF and solid wood.

• For a clean CNC milled finish on both top and bottom surfaces of laminated materials and plywood
• Premium C3 micro-grain solid tungsten carbide for a high-performance industrial quality tool
• Use on CNC, table mount and handheld routers
• Polished to a mirror finish from a solid carbide rod for precision and accuracy
• 3 flute design for more efficient performance on hardwoods and non-ferrous alloys

Specifications

• Self-Feeding: No
• Router/planer type: Straight
• Shank Style: Straight
• Number of Pieces: 1
• Number of Flutes: 3
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Individual/Set: Individual
• Product Length (in.): 2.5
• Product Height (in.): 2.5
• Product Depth (in.): 0.25
• Shank Diameter (in.): 1/4″
• Cut Diameter: 0.25
• Product Width (in.): 0.25 in
